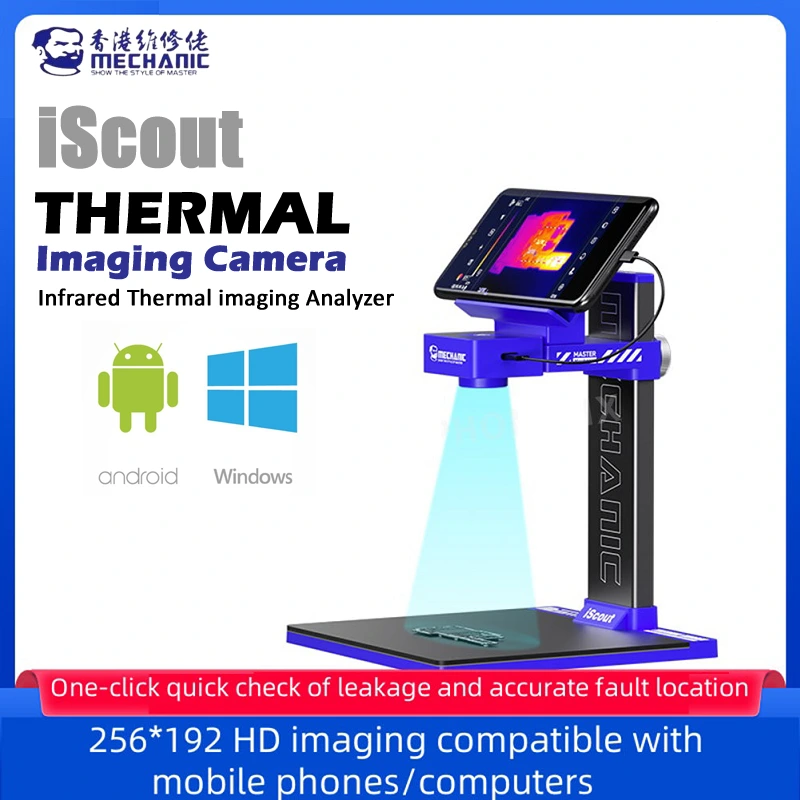

Mechanic iScout Thermal Imaging Camera For Motherboard Fault Detecton Thermal Camera

Description

Mechanic iScout infrared thermal imaging camera electronic circuit board fault analyzer for mobile phone/iPhone/iPad/tablets PCB analysis, diagnosis and troubleshooting

Go To Download Software Link :-

• https://drive.google.com/drive/folders/1EweLgLlluygSjzhmBVR4-fAlNnRX7xPE?usp=sharing

Product Features :-

• Mechanic iScout, as an upgraded version of Mechanic STi-08 thermal imager, beyond imagination, fast fault location. Support one-key leakage detection, the minimum can detect 6mA current leakage.
• Support different areas of the image color change contrast fine check.
• 256×192 pixels ultra-high resolution, 52000 points effective temperature measurement.(192X256)Full frame infrared detection.
• 3D thermal field distribution display of temperature changes, dedicated mode for product evaluation and heat distribution analysis. The innovative 3D thermal field mode is more intuitive and the 2D thermal field area curve is more detailed.
• Double plate comparison zone temperature, curve contrast record for thermal distribution design optimization fault differentiation comparison verification. Regional temperature curve comparison record, superposition comparison, etc.

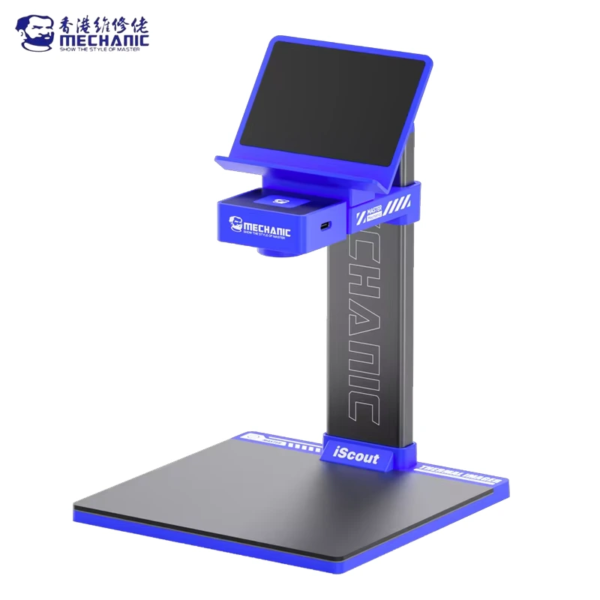

• Comfortable angle up and down, more practical design, quickly adjust the direction of the lens, loosen the sliding screw of the support. It can realize up and down, go up and down and select the appropriate detection angle, The working distance is100-150mm, and the extended lens can be observed at 30mm.

Product Specification :-

• Model: Mechanic iScout Thermal Imaging Camera
• Resolution: 256×192 pixels
• Measurement distance:100mm-150mm
• Device interface: Type C interface
• Lens field of view Angle: 56°x42°
• Image storage format: JPG
• MP4 Video storage format: MP4
• Temperature range: -15℃~+600℃
• Detection: Minimum current leakage of 6mA.
